Code : AW-MS2158

Price : 0

Download PDF

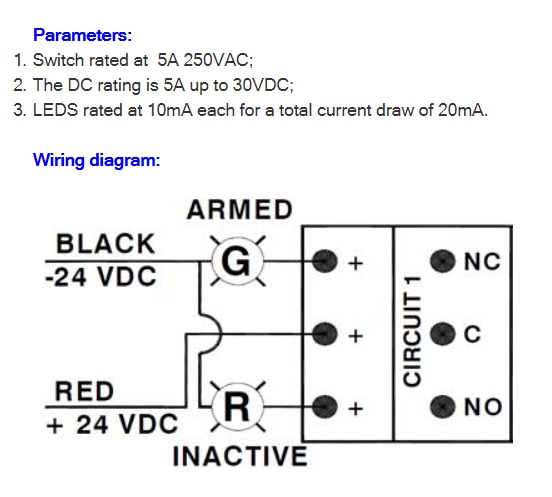

This MAINTENANCE panel is a key switch, which disconnects actuation circuits in the system to prevent accidental discharge during maintenance operations.

Features:

1.Two “LEDS” indicate “SYSTEM ARMED” and “SYSTEM INACTIVE”.
2.When the key is inserted and turned towards “SYSTEM INACTIVE”, the red LED illuminates and the green LED indicating “SYSTEM ARMED” turns off.
3.The key can only be removed in the “SYSTEM ARMED” position.
4.This panel is also available with the key removable in both the “ARMED” and the “INACTIVE” positions.
5.The information is silk-screened on a two-gang stainless plate.
